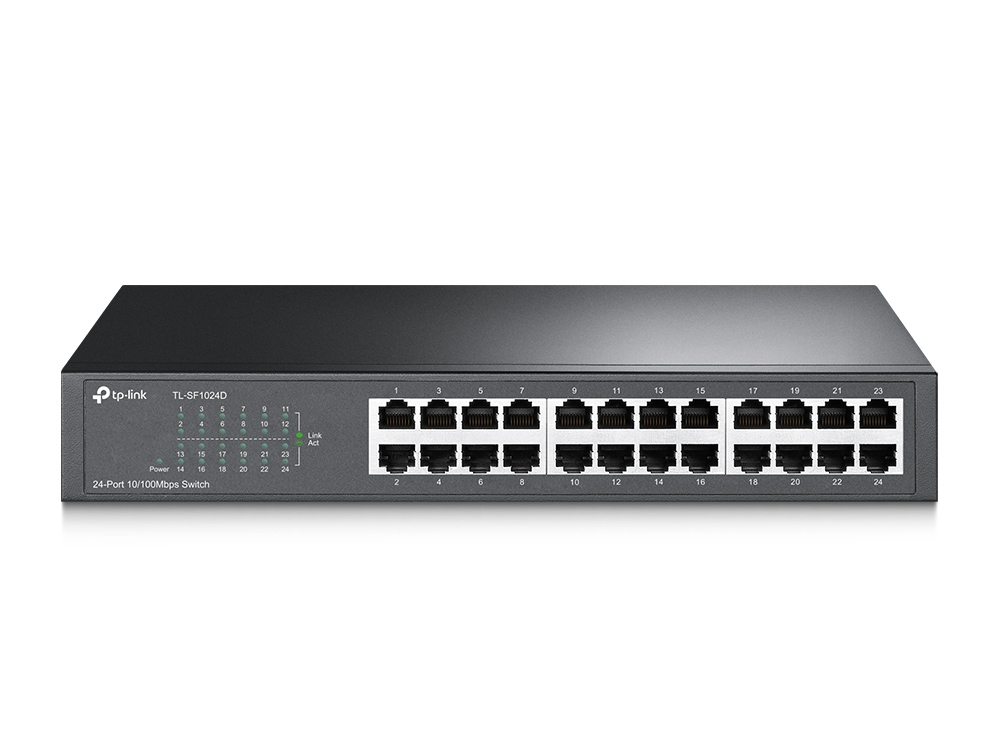

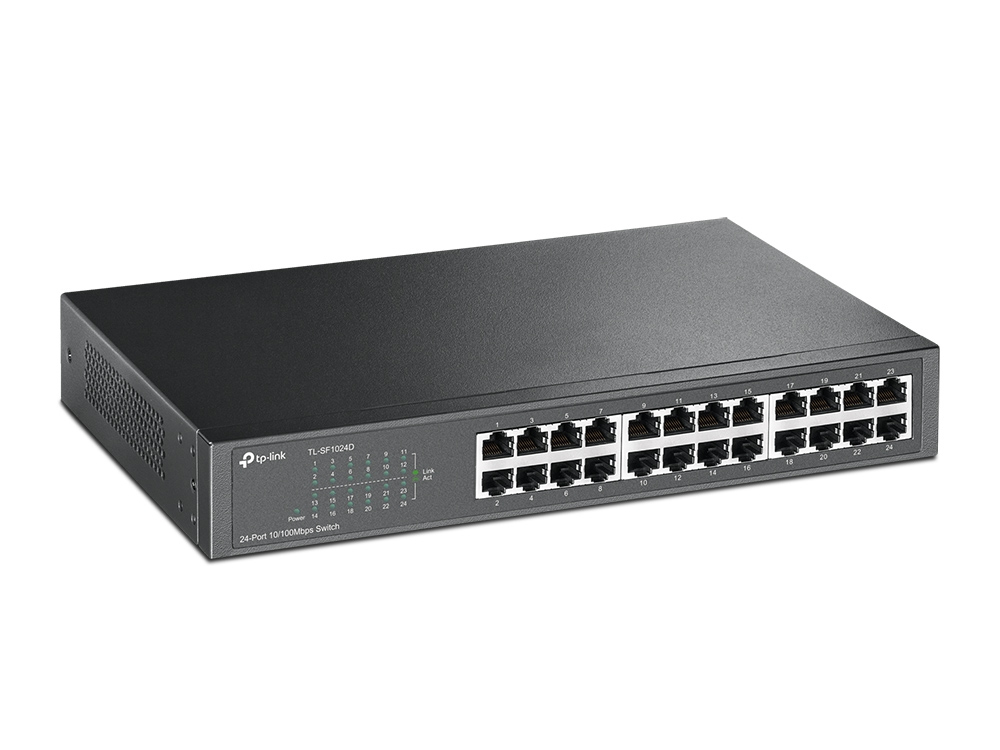

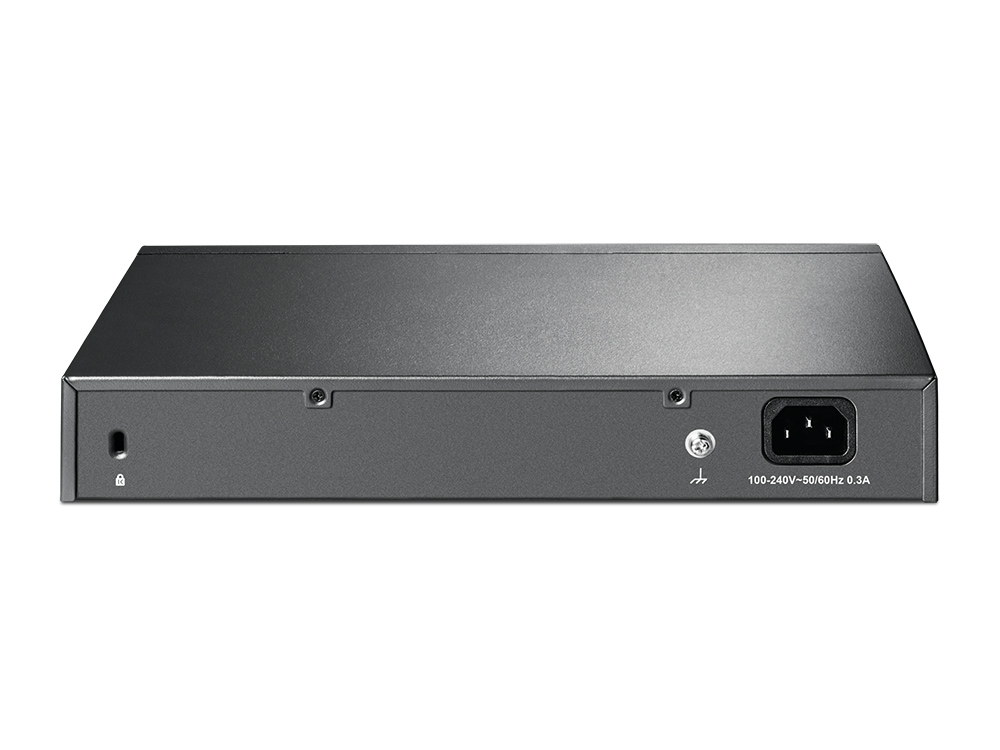

Tp-Link 24-port 10/100Mbps Desktop/Rackmount Switch (TL-SF1024D)

Brand

Tp-Link

Part number

TL-SF1024D

EAN

6935364021498

Management features

Switch type

Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

24

Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)

Fast Ethernet (copper) ports quantity

24

Power connector

AC-in jack

Network

Networking standards

IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G support

No

Copper ethernet cabling technology

10GBASE-T, 100BASE-TX

Cable types supported

Cat3, Cat5e, Cat4, Cat5

Auto MDI/MDI-X

Yes

Ethernet LAN data rates

10,100 Mbit/s

Data transmission

Switching capacity

4.8 Gbit/s

Throughput

3.57 Mpps

Forwarding rate

3.57 Mpps

MAC address table

8000 entries

Store-and-forward

Yes

Packet buffer memory

2 MB

Protocols

Supported network protocols

CSMA/CD, TCP/IP

Design

Rack mounting

Yes

Stackable

No

Product colour

Grey

Housing material

Metal

LED indicators

Yes

Performance

Fanless

Yes

Power

Power source

AC

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Power consumption (typical)

3.53 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)

No

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Heat dissipation

10.88 BTU/h

Weight & dimensions

Width

294 mm

Depth

180 mm

Height

44 mm

Packaging content

Cables included

AC

User guide

Yes

Rack mount kit

Yes

Packaging data

Package type

Box

Package width

250 mm

Package depth

400 mm

Package height

80 mm

Package weight

2 kg

Sustainability

Sustainability compliance

Yes

Certificates

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Logistics data

Harmonized System (HS) code

85176990
