1 / 4
- Product colour:
- White
Tp-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point (EAP230-Wall)
Code: P1003
Last few available
€66.99
VAT included · Price without VAT €56.29 + VAT 19% €10.70
Delivery
- ACS pickup point Collect from an ACS branch or Smartpoint locker. €3.50
- ACS courier to your door Delivered to your home or office. €4.50
- Ships in 2 working days
- Secure card payment with Revolut
- Official warranty, 2-year legal guarantee
- 14-day returns for consumers
Specifications
- Brand
- Tp-Link
- Part number
- EAP230-WALL
- EAN
- 6935364089481
Features
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- 6 GHz
- No
- Maximum data transfer rate
- 1167 Mbit/s
- Maximum data transfer rate (2.4 GHz)
- 300 Mbit/s
- Maximum data transfer rate (5 GHz)
- 867 Mbit/s
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Frequency band
- 2.4 - 5 GHz
- Networking standards
- IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
- Cabling technology
- 10/100/1000Base-T(X)
- Automatic channel selection
- Yes
- Automatic channel scanning
- Yes
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Wi-Fi Multimedia (WMM)/(WME)
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Port-based VLAN, VLAN mapping
- Rate limiting
- Yes
- Band steering
- Yes
- Quality of Service (QoS) support
- Yes
- BeamForming
- Yes
- Transmitting power (CE)
- 20 - 23 dBm
Security
- Security algorithms
- 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
- MAC address filtering
- Yes
- Service Set Identifier (SSID) features
- Multiple SSIDs
- Number of SSID supported
- 16
- Access Control List (ACL)
- Yes
Management features
- Web-based management
- Yes
- Syslog
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- WAN connection
- Ethernet (RJ-45)
Power
- Power over Ethernet (PoE)
- Yes
- Power consumption (typical)
- 9 W
- Power consumption (max)
- 25.5 W
Design
- Placement
- Wall
- Product colour
- White
- Reset button
- Yes
- LED indicators
- Operation
Antenna
- Antenna type
- Internal
- Antenna features
- Integrated antenna
- Antennas quantity
- 2
- Antenna gain level (max)
- 3.6 dBi
Performance
- Compatible operating systems
- Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Certificates
- Compliance certificates
- CE, RoHS
Weight & dimensions
- Width
- 86.8 mm
- Depth
- 86.8 mm
- Height
- 30.2 mm
Packaging data
- Package width
- 118 mm
- Package depth
- 130 mm
- Package height
- 47 mm
- Package weight
- 210 g
Packaging content
- Quantity per pack
- 2 pc(s)
- Mounting kit
- Yes
- Quick start guide
- Yes
Operational conditions
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Storage relative humidity (H-H)
- 5 - 90%
Sustainability
- Sustainability compliance
- Yes
Logistics data
- Harmonized System (HS) code
- 85176990
You may also like
Tp-Link
TP-Link AC1500 WiFi6 Range Extender 1xGigabit Ethernet Port 2 External Antennas (RE505X UK)
€67.99
In stock
Tp-Link

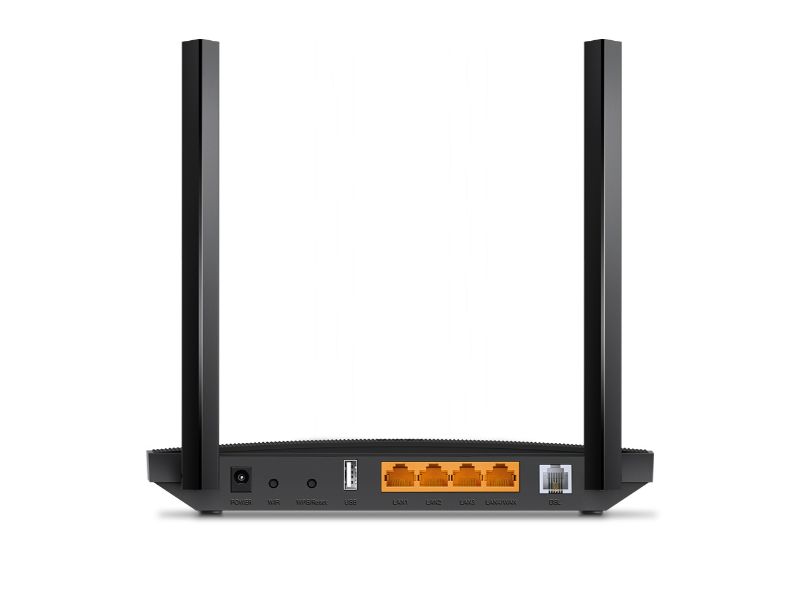

Tp-Link AC1200 Wireless MU-MIMO VDSL/ADSL Modem Router (Archer VR400)
